Capabilities

FDM 3D Printing

Fused deposition modeling also known as FDM 3d Printing, is a popular additive manufacturing technique where layers of thermoplastic material are deposited and fused together to create three-dimensional objects. It works by extruding molten plastic through a heated nozzle, which moves in a controlled manner to build the object layer by layer.

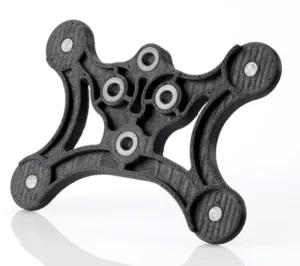

Industrial FDM 3D printing

• 406 × 355 × 406 mm (16 × 14 × 16 in) Build Volume
• ± 0.25% with a lower limit: ± 0.25 mm (± 0.010″)
• Available materials: ABS-M30, ABS-M30i, ASA, Nylon12, Nylon12-CF, ABS-PC, PC, Ultem 1010 and Ultem 9085.

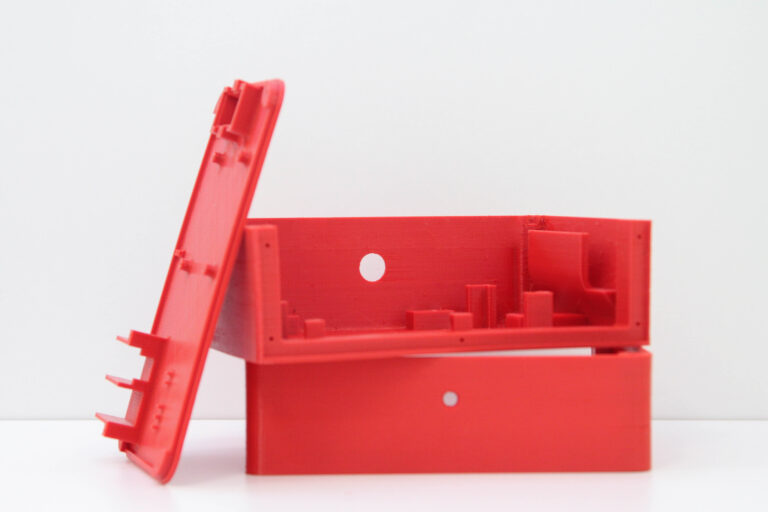

Desktop FDM 3D printing

• 400 x 400 x 400 mm (15.9 x 15.9 x 15.9in) Build Volume
• ± 0.5% with a lower limit on ± 0.5 mm

Learn More

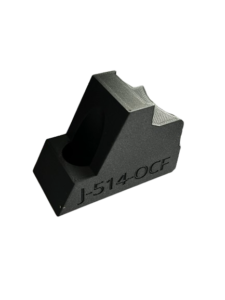

FFF w/ Continuous Fiber Reinforcement 3D Printing

Fused Filament Fabrication (FFF) and continuous fiber reinforcement (CFR) is an advanced 3D printing technology, offering parts that uniquely integrate continuous fiber reinforcement into parts, resulting in exceptionally strong and stiff components suitable for a wide range of industrial application

FFF w/ CFR 3D printing

• 320 × 132 × 154 mm (12.6 × 5.2 × 6 in) Build Volume
• ± 0.25% with a lower limit: ± 0.25 mm (± 0.010″)
• Base Masterial: Onyx – Nylon with chopped carbon fiber
• Optional Fiber Reinforcements: Carbon Fiber, Kevlar, Fiberglass & HIgh Temp Fiberglass

Learn More

SLA 3D Printing

SLA 3D printing, or stereolithography, is an additive manufacturing method that produces intricate, high-resolution models by using a laser to solidify liquid resin layer by layer. This technology is ideal for creating detailed prototypes, intricate designs, and precise parts.

Formlabs SLA 3D Printing

• 335 × 200 × 320 mm (13.2″ x 7.9″ x 11.8″) Build Volume
• ± 0.5% with a lower limit of ± 0.15 mm (± 0.006″)
• Available Resins: BioMed clear, Castable Wax, Elastic 50A, Flexible 80A, Standard, Tough 2000, Rigid 4k and more!

Learn More

SLS 3D Printing

SLS 3D printing, or selective laser sintering, is an advanced additive manufacturing process that constructs objects by selectively fusing fine powder materials, such as Nylon powder, using a high-powered laser. This method enables the creation of complex, durable, and functional parts, making it suitable for a wide range of industrial applications.

EOS SLS 3D Printing

• 200 × 250 × 330 mm (7.9″ x 9.8″ x 13″) Build Volume
• ± 0.2% with a lower limit of ± 0.15 mm (± 0.006″)
• Available Powders: PA2200

Learn More

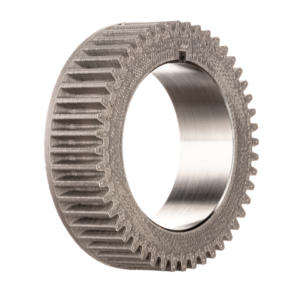

Metal FFF 3D Printing

Metal FFF 3D printing, also known as metal filament fabrication, is an innovative technique that allows the creation of metal parts using a combination of metal-infused filaments and traditional Fused Filament Fabrication (FFF) technology. It offers a more accessible and cost-effective way to produce metal prototypes and components compared to traditional metal printing methods.

Desktop Metal FFF 3D Printing

• Recommended Build Volume: 150 x 150 x 150 mm (5.9 x 5.9 x 5.9 in)
• ± 0.5% with a lower limit of ± 0.15 mm (± 0.006″)
• Available Metals: 17-4 Stainless Steel

Learn More
